Technocrat Biometric Devices

Technocrat Biometric devices, the most rugged, affordable and dynamic biometric devices in the world. This is the number one choice for government, military or corporate portable biometric solutions. Our dynamic device can be used as a solution in different situations, such as;

  • Voter registration
  • Telecoms
  • Banking registration
  • Healthcare
  • Educational institutions
  • Border and access control
  • Law enforcement (ID registration and verification)

Our devices have:

  • Fully rugged
  • Dynamic, hence is adaptable to any unique use
  • Complete biometric solution
  • All finger print options are available – single finger print, 4-4-2 e. t. c.
  • Facial recognition software
  • Iris scanner
  • Dual SIM card (4G)
  • 8MP & 13MP camera resolution

At technocrat, we ensure all our clients are happy with our services. Technocrat Biometric Devices are dynamic, adaptable and can be customized to suite any unique situation.

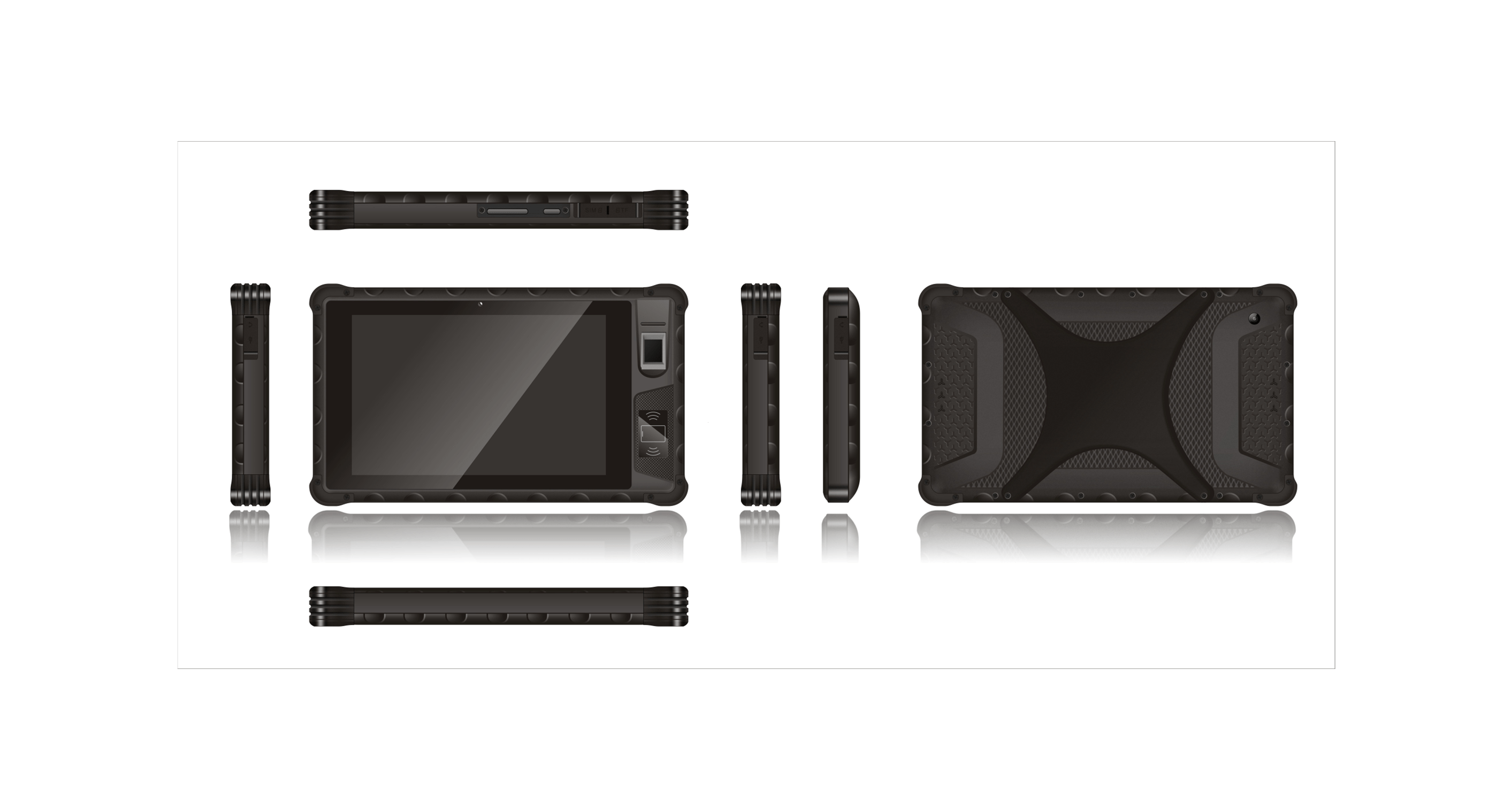

Model SCC-777-F60
SPECIFICATION
CPU  Quad Core – 64Bit- 2GHz Freq
OS Android 9.0 Google Certified. (Optional Android 10 Google Certified)
Screen 9″  5 points touchscreen(16:10 800×1280 IPS)
RAM 4G DDR3L
Flash 32GB (Expandable to 64GB)
Wi-Fi/BT 802.11 b/g/n/ac   –  BT4.0
SIM  Micro LTE Sim Dual Sim  (Optional – Single SIM Optional with PSAM)
Battery 15,000mAH or Higher
Speaker Built-in 8Ω/0.8W
Camera 2.0MP Front/Side and 13.0MP Back Camera  (With Flash)
GPS built-in GPS, support A-GPS, GLONASS, dipper
CASING RUGGED CASING AND CARRY BAG
IP/Waterproof IP65 (Excluding Printer area)
2G /3G GPRS 850/900/1800/1900  WCDMA 2100
LTE /4G B1, B3,B5, B7, B20, B38, B40, B41
Sensor G-Sensor
TF Support SDHC/SDXC
USB USB OTG, FULL USB PORT
POWER CHARGING Dedicated DC Charging port/Power Jack and USB charging port
Fingerprint  Integrated Biometric KOJAK (PL)
10 Finger FBI Certified 4-4-2 Reader – 500DPI (FAP60, FIPS201 Compliant)
RUGGED Dustproof, water proof (without Printer), MIL-STD-810 Rugged
Others Signature Pad – Screen
Allow Charge with Solar
FRR / FAR       0,1% / 0,001%
Fake Fingerprint Proof/Liveness Detection    Yes
NFC/ RFID 13.56mHz  (optional)
 Printers 2″ x 4″ Zero-No ink Technology – (Black and white)  Android Print Service Support. (BW)  (Integrated/embedded)
Certification NIMC Certified
FOTA Yes
PSAM Financial PSAM Compliant – Optional Extra
:Remarks
◆Standard specification including the normal adapter,USB cable and package
Hand held design for easy Field Use. Portable Size



FAP60  STANDALONE  FINGERPRINTER SCANNER XP CHAMAELEON – SC-777  LITE  KOJAK SPECIFICATIONS

   BASE PRODUCT  INTEGRATED BIOMETRIC  – KOJAK (PL)
500 PPI
PLATEN SIZE 3.5” x 3.15” / 88.9 mm x 80.01 mm
SENSING AREA 3.2” x 3.0” / 81.28 mm x 76.3 mm
GRAY SCALE 256 grayscale dynamic range
IMAGE SIZE 1600 (W) x 1500 (H) pixels
SUPPORTED IMAGE FORMATS RAW, JPEG2000, BMP, PNG, WSQ
SCANNER PHYSICAL SIZE 4.5” x 5.2” x 3.3” /
114.3 mm x 132.08 mm x 83.83 mm
INTERFACE USB 2.0+
USB CERTIFICATION SPEC USB-IF USB.ORG
USB LEVEL 4.40V – 5.25V
FCC/CE CONFORMANCE FCC Part 15 (per ANSI C62.4:2003) Class A,
CSA ICES-003 Class A, CE Emissions:
EN 55022:2006 Class A, CE Immunity:
EN 55024:1998/A1:2001/A2:2003,
IEC 61000-4-2
EQUIPMENT SAFETY IEC 60950-1
PRODUCT WEIGHT 725 grams / 1.6 lbs (not including cable)
POWER CONSUMPTION <300mA during full scanning mode
AIR DISCHARGE / CONTACT DISCHARGE In compliance with IEC 61000-4-2
OPERATING TEMPERATURE -10°C ~ +55°C / 14°F ~ 131°F
HUMIDITY 30~85% RH < 40°C / 104°F
(Non-condensing)
STORAGE TEMPERATURE -30°C ~ +60°C / -22°F ~ 140°F
RoHS CERTIFIED RoHS Directive 2002/95/EC
INGRESS PROTECTION Direct water spray, no dust or dirt ingress, IP65 bezel
OS SUPPORT Android 4.0+, Windows Desktop 32/64 bit (7, 8, 10),
SURFACE DURABILITY MIL-C-675c 4.5010, MIL-STD-810F
FBI CERTIFICATION FBI Appendix F, PIV, FIPS 201, FAP 60
NIMC CERTIFICATION NIMC Approval
TECHNOLOGY LES (Light Emitting Sensor)
COMPATIBILITY Field Capable. Ability TO Work under direct Sunlight
FINGER OPTIONS 1, 2, 4, 4-4-2
 OTHER FEATURES Liveness detection, Anti-Spoofing.
BATTERY 8,000 mah (Optional Extra)
PRINTER 2” x 4” Zero-No ink Technology (Black and White)
DEVICE LOCK Password Lock of device (Optional Extra)

TECHNICAL SPECIFICATIONS

Technocrat 777-FO:

Specification
CPU  Quad Core – 64Bit- 2GHz Maximum Freq,
OS Android 9.0 Optional)
Screen 8″  5 points touchscreen(16:10 800×1280 IPS)
RAM 2G DDR3L
Flash 32GB (Expandable to 64GB)
Wi-Fi/BT 802.11 b/g/n/ac   –  BT4.0
SIM  Micro LTE Sim (Dual Sim)
Battery 8000mAH
Speaker Built-in 8Ω/0.8W
Camera 5.0MP Front/Side and 13.0MP Back Camera  (With Flash)
GPS built-in GPS, support A-GPS, GLONASS, dipper
CASING RUGGED CASING AND CARRY BAG
IP/Waterproof IP65
2G /3G GPRS 850/900/1800/1900  WCDMA 2100
LTE /4G B1, B3,B5, B7, B20, B38, B40, B41
Sensor G-Sensor
TF Support SDHC/SDXC
USB USB OTG,
POWER CHARGING Dedicated DC Charging port and USB charging port
Fingerprint 10 Finger FAP Certified 4-4-2 Reader – 500DPI (FAP50, FIPS201 Compliant, FBI Certified) –
RUGGED Dustproof, water proof, Crash proof /MIL-STD-810  (1.5M DROP)

NFC 13.56mHz – Optional

:Remarks
◆Standard specification including the normal adapter,USB cable and package
Technocrat-777 Multiple Finger Capture – No NFC & Contact Card Reader Suggested Tender Spec
Operating System Android 9 (Google certified) Android 9 and above (Google Certified)
Processor 64-bit, Up to 2.0 GHz – Dual-core CPU (8x ARM Cortex AS) Must be 64bit Dual Core CPU  or higher
Internal Memory 2GB RAM (DDR3LJ 32GB ROM (EMMC 4.51)- ( other options are 4GB RAM (DDR3L) 64GB ROM (EMMC 4.51)-4GB RAM (DDR3LJ 128GB ROM (EMMC 4.51)) Minimum 2GB RAM and Minimum 32GB ROM
Display 8” 10-Point G+G Capacitive Multi-Touch LCD Display Corning antiglare glass, sunlight readable, glove friendly. Resolution: 1080 x 2160 Pixels , Must be 8″ 10-point touch screen, sunlight readable and scratch resistant
Mobile Connectivity 3G+ 4G Modem. Global support, adapt to region bands & frequencies. Mobile bands: LTE. UMTS/WCDMA Mobile data: EDGE, FDD I TDD LTE, DC-HSPA+ 3G+4G Modem
WI-Fi IEEE 802.11 a/b/g/n/ac (2.SGhz & SGhz)
Bluetooth Bluetooth 4.2 (SIG standard) Must have BlueTooth
GPS GPS(GNSS) & GLONASS Receiver. Accuracy within Sm. Can operate without data connection Must have GPS
Front Camera 8MP Front camera min 5mp
Back Camera 13MP auto focus  auto focus with LED Back camera min 13 mp with auto focus with LED
Sensors G Sensor/Proximity Sensor/Light Sensor
External Connection Ports 1 x DC charge I 1 x USB3.0 I 1 x 3.Smm audio jack Must have 1 x USB port, 2 x MicroSIM ports, 1 x MicroSD
  1 x Micro SD (up to 128GB) I 2 x Micro SIM / 1 x Micro SAM
Fingerprint Sensor 4-4-2 Finger Scanner using LES (Light Emitting Sensor) technology FBI PIV FAP50 or higher certified Resolution: 5OO PPI. Must be operatable in direct sunlight
  Excellent with dry and dirty fingers. Integrated Must be FAP50 or FAP60 FBI PIV certified fingerprint reader, 4-4-2
  Surface durability: MIL·C·675c 4.5010, MIL-STD-810F. Surface resistance to ammonia, IPA, methanol,
  soaps/detergents & salt water
Speaker/Microphone 2 x waterproof stereo speakers & 2 x internal microphones
Protective Casing Rugged water I dust I shockproof IP65 rated & MIL 81 OG certified Drop tested up to l .2m Handheld must be MIL 810G  and at least IP65 Complaint
Battery 8000mAH I 3.85V smart battery Approx. 24 hours operating time Minimum of  8,000 mAH battery
Power Adaptor Input: 100-240VAC 50/60Hz Output: 5VDC 2A
LED Status Indicators  Multi-function status LED indicator Functions
Physical Buttons Functions /Power ON-OFF/Volume UP-DOWN
Dimensions & Weight 241 mm x97mmx 55 mm/665g
Environmental Conditions Operating conditions: Temp -1o·c – +so•c Humidity 10%<RH<90% Storage: -20°c – +60°c 5%<RH <95%
Certification FCC, CE, RoHS







Technocrat 777-A:

Technocrat-777 A Single – No NFC & Contact Card Reader Suggested Tender Spec
Operating System Android 9 (Google certified) Android 9 and above (Google Certified)
Processor 64-bit, Up to 2.0 GHz – Dual-core CPU (8x ARM Cortex AS) Must be 64bit Dual Core CPU  or higher
Internal Memory 2GB RAM (DDR3LJ 32GB ROM (EMMC 4.51)- ( other options are 4GB RAM (DDR3L) 64GB ROM (EMMC 4.51)-4GB RAM (DDR3LJ 128GB ROM (EMMC 4.51)) Minimum 2GB RAM and Minimum 32GB ROM
Display 8” 5-Point G+G Capacitive Multi-Touch LCD Display Corning antiglare glass, sunlight readable, glove friendly. Resolution: 1080 x 2160 Pixels , Must be 8″ 5-point touch screen, sunlight readable and scratch resistant
Mobile Connectivity 3G+ 4G Modem. Global support, adapt to region bands & frequencies. Mobile bands: LTE. UMTS/WCDMA Mobile data: EDGE, FDD I TDD LTE, DC-HSPA+ 3G+4G Modem
WI-Fi IEEE 802.11 a/b/g/n/ac (2.SGhz & SGhz)
Bluetooth Bluetooth 4.2 (SIG standard) Must have BlueTooth
GPS GPS(GNSS) & GLONASS Receiver. Accuracy within Sm. Can operate without data connection Must have GPS
Front Camera 8MP Front camera min 5mp
Back Camera 13MP auto focus  auto focus with LED Back camera min 13 mp with auto focus with LED
Sensors G Sensor/Proximity Sensor/Light Sensor
External Connection Ports 1 x DC charge I 1 x USB3.0 I 1 x 3.Smm audio jack Must have 1 x USB port, 2 x MicroSIM ports, 1 x MicroSD
  1 x Micro SD (up to 128GB) I 2 x Micro SIM / 1 x Micro SAM
Fingerprint Sensor Single Finger Scanner using LES (Light Emitting Sensor) technology FBI PIV FAP30 certified Resolution: 5OO PPI. Must be operatable in direct sunlight
  Excellent with dry and dirty fingers. Must be FAP30 FBI PIV certified fingerprint reader
  Surface durability: MIL·C·675c 4.5010, MIL-STD-810F. Surface resistance to ammonia, IPA, methanol,
  soaps/detergents & salt water
Speaker/Microphone 2 x waterproof stereo speakers & 2 x internal microphones
Protective Casing Rugged water I dust I shockproof IP65 rated & MIL 81 OG certified Drop tested up to l .2m Handheld must be MIL 810G  and at least IP65 Complaint
Battery 8000mAH I 3.85V smart battery Approx. 24 hours operating time Minimum of  8,000 mAH battery
Power Adaptor Input: 100-240VAC 50/60Hz Output: 5VDC 2A
LED Status Indicators  Multi-function status LED indicator Functions
Physical Buttons Functions /Power ON-OFF/Volume UP-DOWN
Dimensions & Weight 263 mm x148mmx 29 mm/850g Portable Mobile device
Environmental Conditions Operating conditions: Temp -1o·c – +so•c Humidity 10%<RH<90% Storage: -20°c – +60°c 5%<RH <95%
Certification FCC, CE, RoHS
